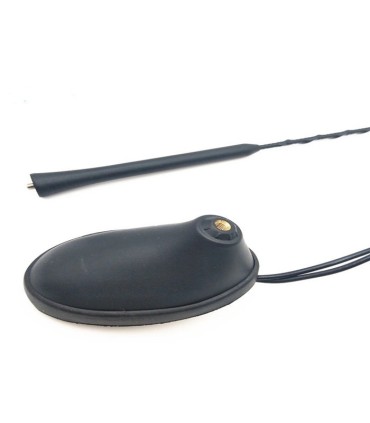

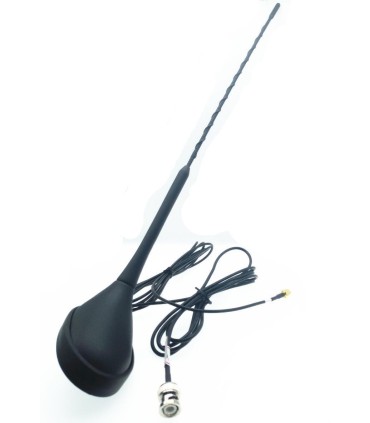

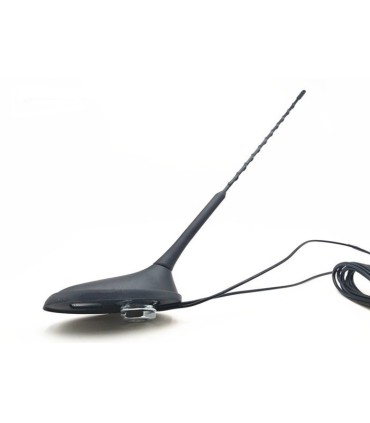

ANTENA MOVIL GPS/TETRA/UHF PHANTOM II GPS- TETRA-UHF-04,COMBO GPS/V-UHF SRTM-870 SIRTEL
ANTENA MOVIL GPS/TETRA/UHF PHANTOM II GPS- TETRA-UHF-04,COMBO GPS/V-UHF SRTM-870 SIRTEL
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
CARATERISTICAS
Dielectric Antenna
Center Frequency（MHz）：1575.42±3
VSWR：1.5:1
Bandwidth（MHz）：±5
Impedance（Ω）：50
Peak Gain＞3dBiBasedon7cm×7cmgroundplane
Gain Coverage＞-4dBiat–90°＜0＜+90°(
over75%Volum
Polarization：RHCP
UHF Antenna
Frequency（MHz）：370-390
Typical Gain：2dBi+/-1dB
VSWR：2.0:1
Impedance（Ω）：50
LNA/Filter
LNA Gain
(Without Cable)：28dBiTypical
NoiseFigure（dB）：1.5
Filter Out Band Attenuation (f0=1575.42MHz)
7dBMinf0+/-20MHz;
20dBMinf0+/-50MHz;
30dBMinf0+/-100MHz
VSWR＜2.0
DCVoltage（V）：2.7/3.0/3.3/5.0/3.0to5.0etc.
DCCurrent（mA）：11Max
Mechanical
Weight（gram）＜240
Size（mm）95×56×410
Cable GPS（m）：RG1745etc.
UHF/VHF（m）：RG1745etc.
Connector GPS：SMA etc.
UHF：BNC etc.
Mounting
：Screw
(Hole/Roof)
Housing
：Black
Environmental
WorkingTemp
：-40℃~+85℃
StorageTemp
：-45℃~+100℃
Vibration：Sinesweep1g(0-p)10~50~10Hzeachaxis
Humidity
：Humidity95%~100%RH
Weatherproof：100%Waterproof
